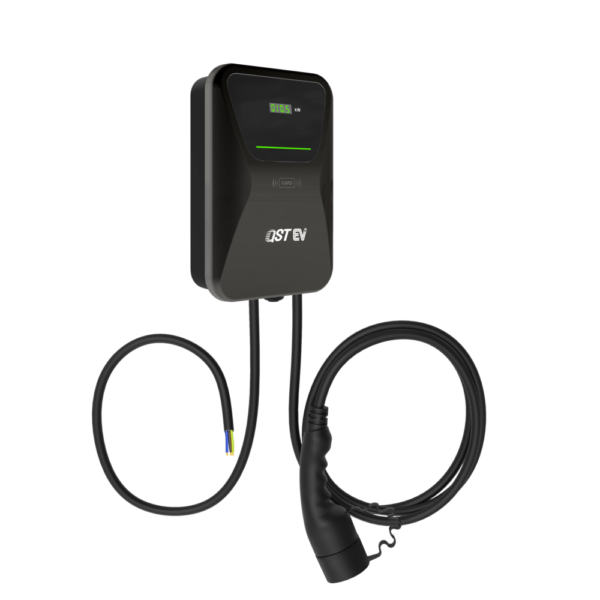

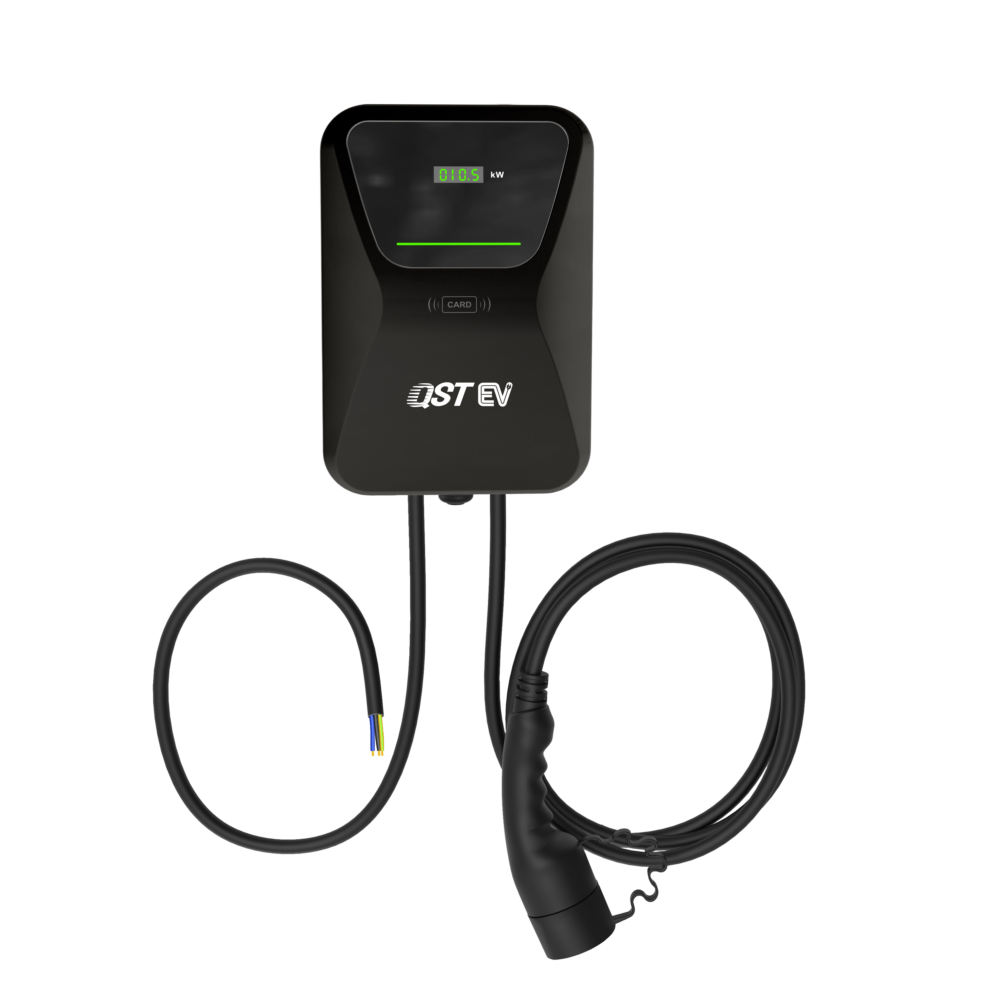

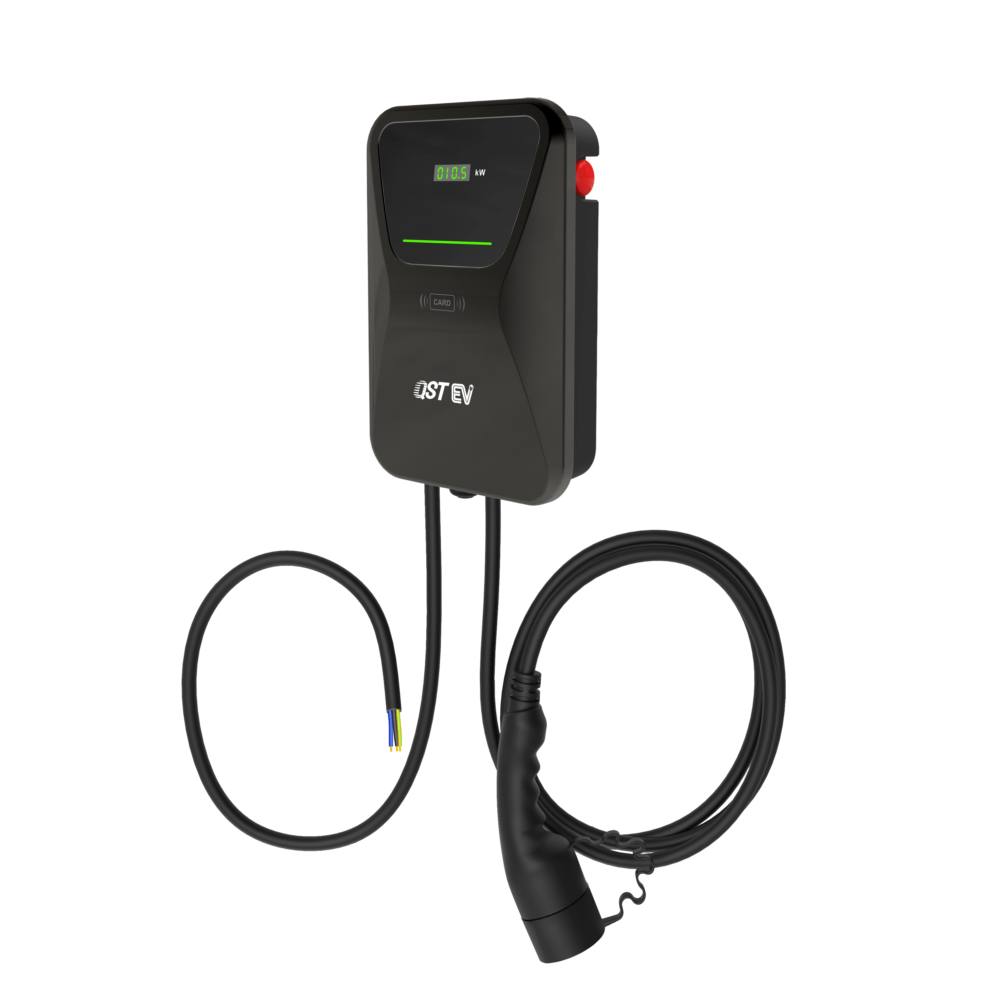

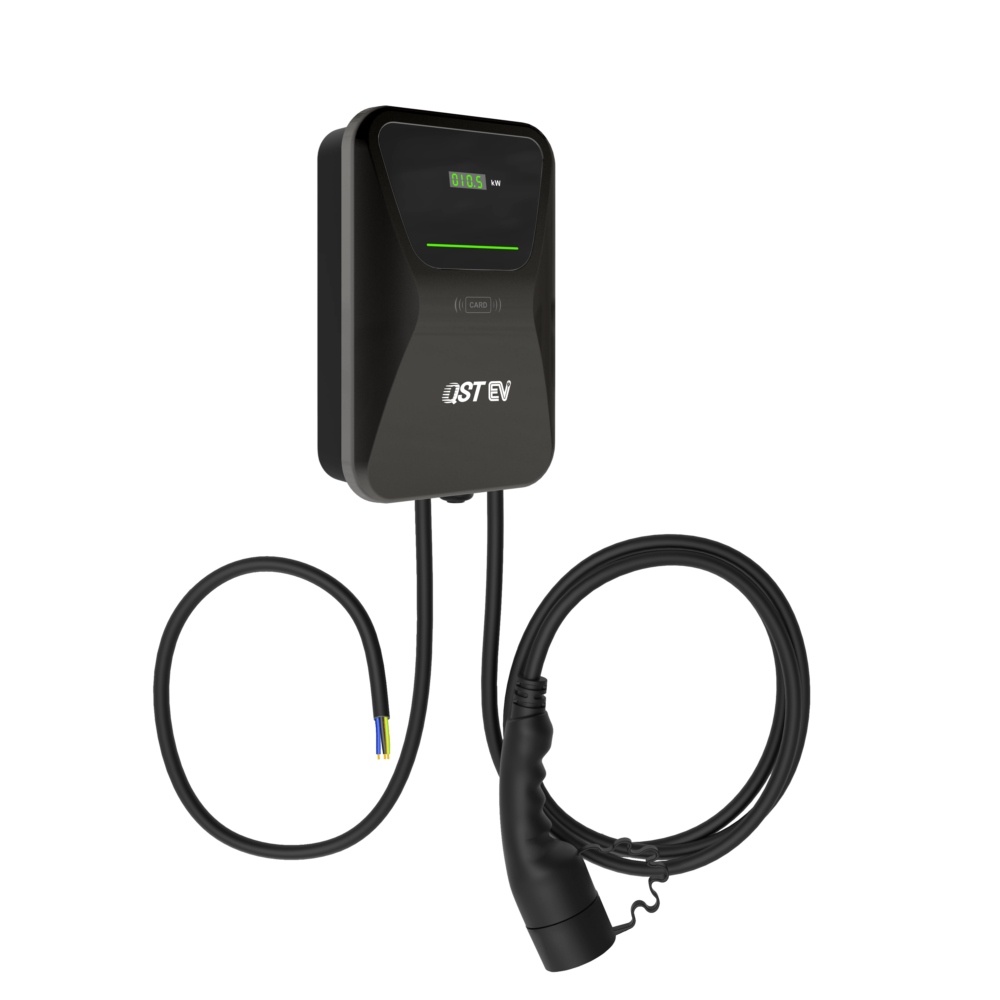

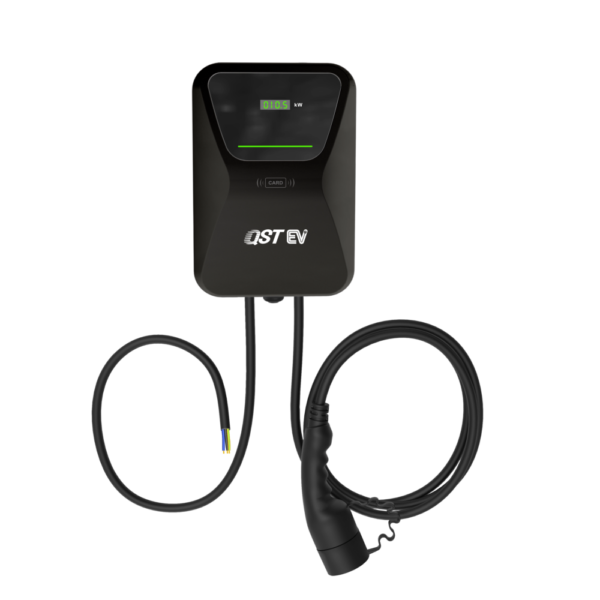

QSTEV-AI-FLS Type 2 22kW EV Home Intelligent Charging LED with DLM
QSTEV-AI-FLS EV home Charger Smart App with 32A Type 2 22kW or 11kW Home Charging Station 400V CE & TÜV Wallbox 5 m Charging Cable with Charger Holder App Control with LED Display.
Simple and intelligent:
AC EV Charger is equipped with an easy-to-operate user interface, including a display and buttons or touch screen, allowing users to monitor charging status, adjust settings and plug and charge.
Secure and Safe:
AC EV Charger has lightning protection, leakage, overvoltage, undervoltage, overheating, and overcurrent protection. LED indicators help read charging status and improve visibility in the dark. IP55 waterproof.
Flexible Option:
Our products have convenient compatibility and control systems. AC EV Charger is compatible with all electric vehicles, including Tesla.
You can also choose the right charging speed for your electric car.
it is Universal Type 2 charging cable and can install on Wall-mount or floor-stand.
Specifications
Product Specifications
| Model | QSTEV-AI-FLS07 | QSTEV-AI-FLS11 | QSTEV-AI-FLS22 |
| Technical features | |||
| Charging capacity | Up to 7KW | Up to 11 KW | Up to 22 KW |
| Input/Output power | 230VAC±20%-50/60Hz-32A-1phase | 400VAC±20%-50/60Hz-16A-3phase | 400VAC±20%-50/60Hz-32A-3phase |
| RCD | 30Ma RCD Type A and DC 6Ma RCD function | ||
| Standby power | <3W | ||
| Measuring accuracy | 1 % | ||
| Communication | Bluetooth/WIFI(Optional) APP | ||
| User interface | LED/LCD(3.5’)/ RFID(Mifare ISO& IEC 14443A) | ||
| Certificate | CE / EN/ IEC 61851‐1:2019, EN/IEC 61851-21-2:2018,IEC 62955:2018 | ||
| Charging Interface | Type 2 cable 5M | ||
| Special Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under temperature protection | ||
| Physical properties | |||
| Warranty | 2 years | ||
| Protection | IP54, IK10 | ||
| Enclosure | Plastic PC940/ Galvanized steel | ||
| Front Panel | Temper glass | ||
| Installation | Wall-mount/Pole-mount | ||
| Cooling | Natural cooling | ||
| Operating temperature | -30℃to +55℃ | ||
| Humidity | Max .95%(non-regulating) | ||
| Product Dimensions | 368*100*228 mm | ||
| Package Dimension | 330*470*290 mm | ||
| Net Weight | 4.5Kg | 5.5Kg | 6.5Kg |
| Gross Weight | 5.5Kg | 6.2Kg | 7.5Kg |
Product Features
- Secure and Safe The best charging station for home and private use Type A+DC 6mA leakage protection Light weight size Home use app with intelligent Bluetooth control the Wallbox Dynamic Load Balance High compatibility Type 1 or Type 2 charging cable Wall-mount or floor-stand installation
Worldwide Projacts
Download
Elevate your business with the QST EV Smart Charging Solution—where innovation meets sustainability.
Dynamic Load Balancing
The qstev charger home AC EV chargers are equipped with DLB (Dynamic Load Balancing) technology.When the EV charger is running simultaneously with other home appliances, the DLB box ensures a dynamic balance of the total household current.This function guarantees electricity safety and prevents household overload, thus enabling efficient and safe charging of EVs.
Smart APP Control
QST EV AC EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:
- One to one binding EV charger by resetting the password, prevent the EV charger being stolen;
- View charging data and status;
- Set up various charging configurations, charging current, DLB mode, etc.
- Scheduled charging;
- Firmware update;
