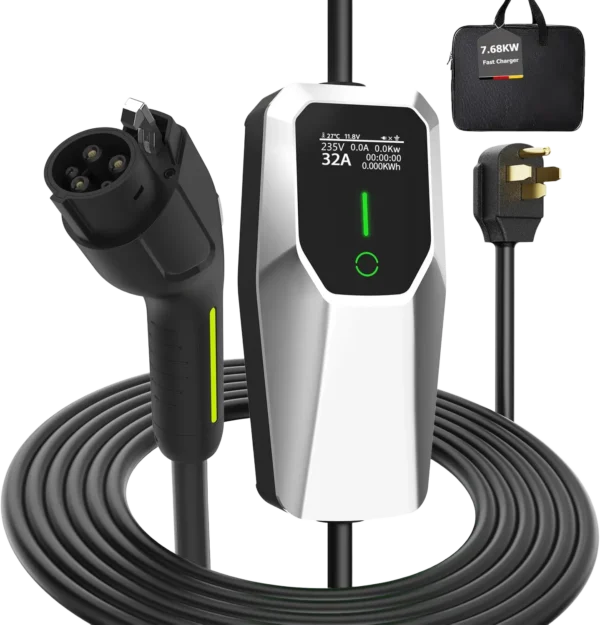

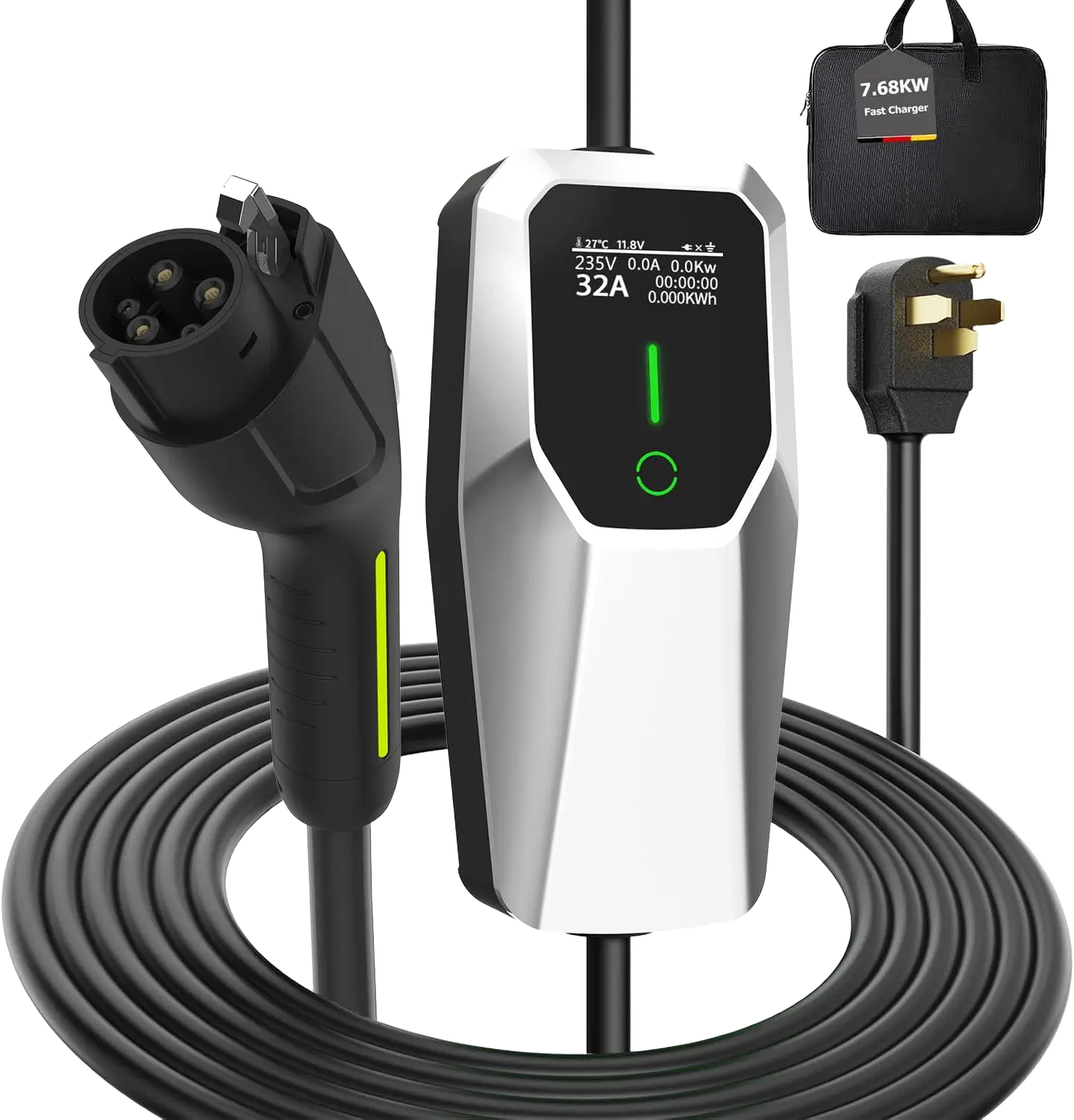

QSTEV-AI-PO-US Portable Electric Vehicle Charger Level 2 with J1772 Connector
QSTEV-AI-PO-US Portable Electric Vehicle Charger Level 2, 7.68KW Fast Charger with J1772 Connector and NEMA 14-50 Plug Scheduled Charging, Works with EV and Hybrid Vehicles, for Home and Outdoor
Over temperature protection
High protection grade up to Ip65
Friendly Interface: OLED Display
Current can 8A , 10A , 13A , 16A ,20A ,32A,adjustable
Charge your EV car 7.6kW 240V Level 2/ 3.6v Level 1 110V
High compatibility: Fully compatible with all Electric Vehicle in the market
Specifications
Product Specifications
| Model | QSTEV-AI-PO-US7K | QSTEV-AI-PO-US11K | |
| Technical features | |||
| Charging capacity | Up to 7KW | Up to 11.5 KW | |
| Input/Output power | 240VAC±15%-60Hz | 240VAC±15%-60Hz | |
| RCD | RCMU(Type A+ DC 6mA)/ Type B RCCB(Optional) | ||
| Standby power | <3W | ||
| Measuring accuracy | 1 % | ||
| Communication | – | ||
| Load balancing | – | ||
| Protection | IK10 | ||
| User interface | RGB LED | ||
| Certificate/Compliance | CE/ FCC/ETL/ ROHS/ REACH/ IEC/ EN 61851-1， IEC/ EN61851-21-2 , IEC/ EN 62955 ,EN300328 , EN 301489-1/-17 , EN62479.UL 2231-1,UL2231-2, UL2594,NEC Article 625,CSAC22.2,UL 916 | ||
| Charging Interface | SAE-J1772 / 16.5-foot (5M) cable /NEMA 14-50 Plug | ||
| Special Protection | Over current protection , Residual current protection , Ground protection , Surge protection , Over/ Under voltage protection , Over/ Under frequency protection , Over/ Under temperature protection | ||
| Physical properties | |||
| Enclosure | Plastic Pc940 | ||
| IP Level | IP65 | ||
| Front Panel | Temper glass | ||
| Installation | Tabletop Mount | ||
| Cooling | Natural cooling | ||
| Operating temperature | -30℃to +55℃ | ||
| Humidity | Max .95%(non-regulating) | ||
| Product Dimensions | 210*88*50( L*W* H ) mm | ||
| Package Dimension | 350*320*60( L*W* H ) mm | ||
| Net Weight | 2.2Kg | 2.5Kg | 8Kg |
| Gross Weight | 2.2Kg | 2.7Kg | 9Kg |
Product Features

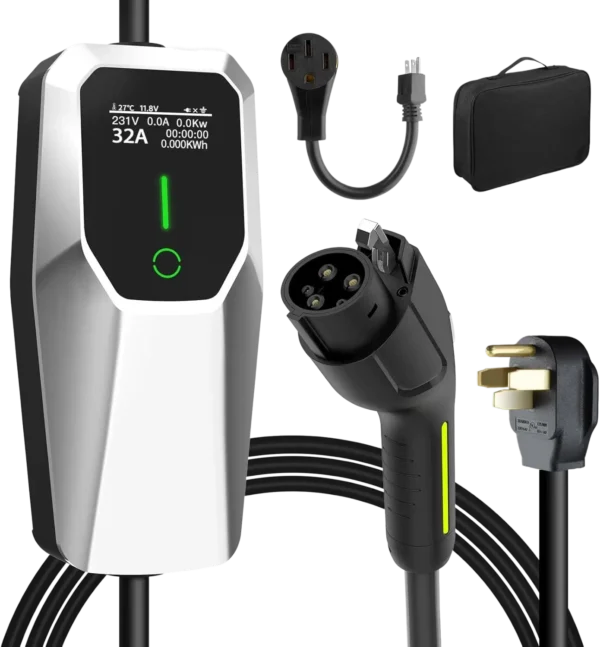

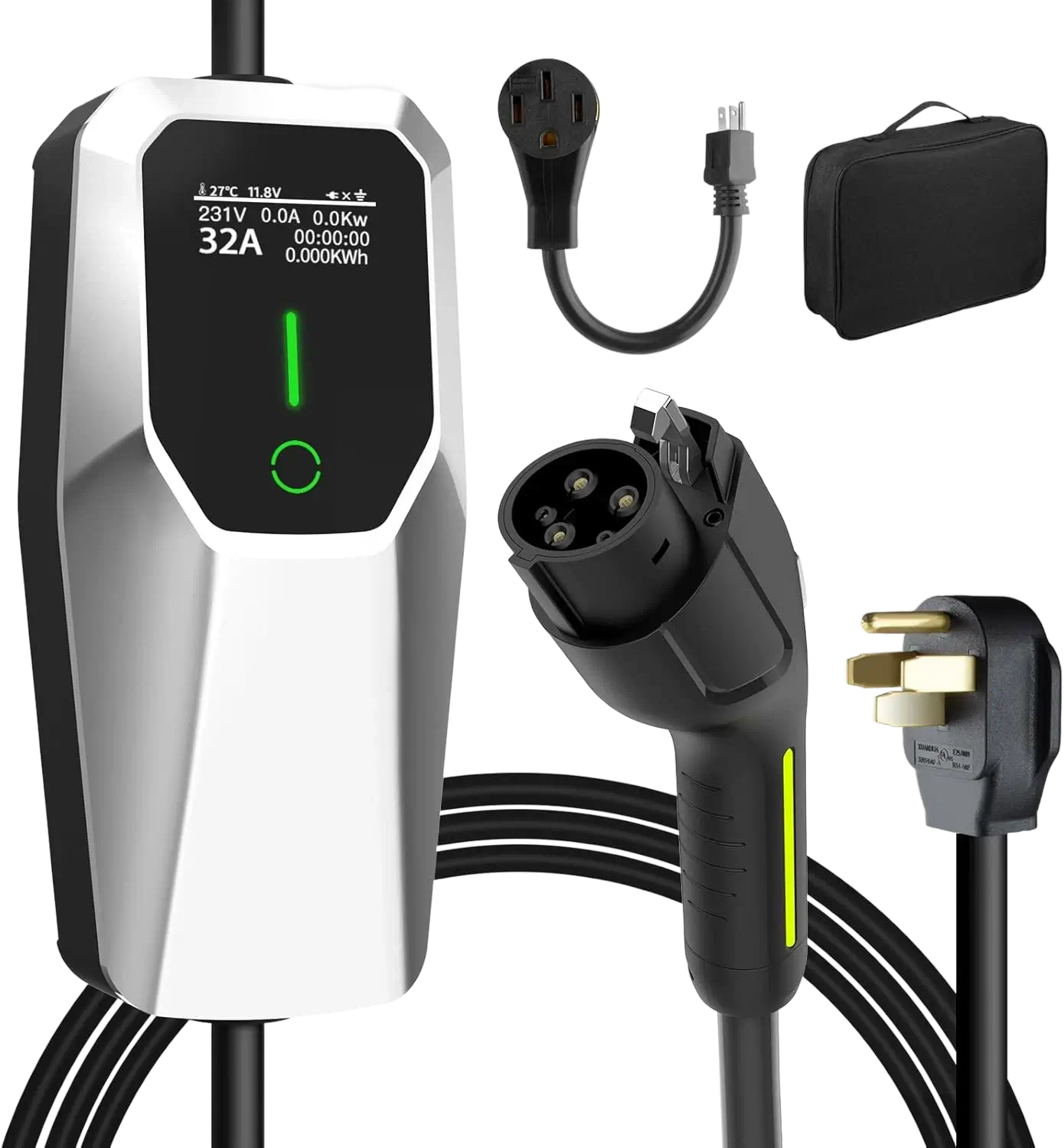

2 in1 Portable EV Charger
- Charge your EV faster with the Tarnavo 32AMP 7.6kW 240V Level 2 charger, achieving 28-38 miles of range in just one hour. This high-speed charger operates six times faster than traditional Level 1 chargers, significantly reducing your waiting time.
- Customize your charging with adjustable amperage settings (10/16/20/24/32A) to match any home installation. Utilize the delay start timer to schedule your charges (0 to 12 hours), optimizing electricity use and reducing peak load costs.
- With top priority on safety, this charger includes multiple protections: Leakage, Short Circuit, Over-Heat, Ground Fault, Over-Current, Low-Voltage, and Over-Voltage. It’s IP65 waterproof and backed by CE & FCC certifications, ensuring safe charging for all non-Tesla EVs and hybrids with a standard J1772 connector.
- Monitor your charging status effortlessly with a large 2.4″ LCD screen displaying voltage, charging time, and current rate. LED indicators provide visual status updates and error notifications, keeping you informed throughout the charging process.
Worldwide Projacts
Download
Elevate your business with the QST EV Smart Charging Solution—where innovation meets sustainability.
Dynamic Load Balancing
The qstev charger home AC EV chargers are equipped with DLB (Dynamic Load Balancing) technology.When the EV charger is running simultaneously with other home appliances, the DLB box ensures a dynamic balance of the total household current.This function guarantees electricity safety and prevents household overload, thus enabling efficient and safe charging of EVs.
Smart APP Control
QST EV AC EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:
- One to one binding EV charger by resetting the password, prevent the EV charger being stolen;
- View charging data and status;
- Set up various charging configurations, charging current, DLB mode, etc.
- Scheduled charging;
- Firmware update;
