QSTEV-AI-CDR OCPP Charger Compact and Powerful EV charger Solution
QSTEV OCPP AC EV charger allows the charger working efficient good solution for EV owners and charging station operators.
Feature
- 7Kw/11Kw/22Kw power Charging
- Universal charging port plus a Type 2 Cable and connector
- Cost-effective and compact
- Built- in LED lights for both charging methods that display charging status and error messages
- Built-in PEN Protection
- Full OCPp 1.6J protocols including smart charging
- Load Balancing
- QSTEV App
- Designed with ISO 15118 Plug & Charge
- Overcurrent, overvoltage, undervoltage, ground fault and surge protections integrated
- IP54 rated dust and weatherproof
- CE and UKCA approved
Specifications
Product Specifications
| Model | QSTEV-AI-CDR7 | QSTEV-AI-CDR11 | QSTEV-AI-CDR22 | |||
| Technical features | ||||||
| Charging capacity | Up to 7KW | Up to 11KW | Up to 22KW | |||
| Input/Output power | 230VAC±20%-50/60Hz- 32A-1phase | 400VAC±20%-50/60Hz- 16A-3phase | 400VAC±20%-50/60Hz- 32A-3phase | |||
| RCD | RCMU(Type A+ DC 6mA)/ Type B RCCB(Optional) | |||||
| Standby power | <3W | |||||
| Measuring accuracy | 1 % | |||||
| Energy Meter | MID certified | |||||
| Load balancing | Yes | |||||
| Communication | WIFI/ Ethernet/4G(Optional) | |||||
| User interface | LCD 5 inch Touch Screen/ RFID( mifare iso& IEC 14443A) | |||||
| Certificate/Compliance | CE/ FCC/ ROHS/ REACH/ IEC/ EN 61851-1， IEC/ EN61851-21-2 , IEC/ EN 62955, EN300328 , EN 301489-1/-17 , EN62479 . | |||||
| Charging Interface |
| |||||
| Special Protection | Over current protection , Residual current protection , Ground protection , Surge protection , Over/ Under voltage protection , Over/ Under frequency protection , Over/ Under temperature protection | |||||
| Physical properties | ||||||
| Enclosure | Plastic Pc940 | |||||
| IP Level / Protection | IP55 / IK10 | |||||
| Front Panel | Temper glass | |||||
| Installation | Wall-mount/ Pole-mount . | |||||
| Cooling | Natural cooling | |||||
| Operating temperature | -30℃to +55℃ | |||||
| Humidity | Max .95%(non-regulating) | |||||
| Product Dimensions | 503*334* 155( L*W* H ) mm | |||||
| Package Dimension | 610*415*250( L*W* H ) mm | |||||
| Net Weight | 13.5Kg | 13.5Kg | 13.5Kg | |||
| Gross Weight | 15Kg | 15Kg | 15Kg | |||
Product Features
- QSTEV Charger Station is a high-performance charging solution designed to support electric vehicles (EVs) in home and public spaces. in busy urban areas or high-traffic locations like parking lots, commercial centers, and highway service areas.
- With a power output of 7Kw/11Kw or 22Kw, it provides a fast-charging experience for EV users, significantly reducing charging time compared to standard home chargers. The station is compatible with most EV models and supports AC charging, making it a versatile option for different types of electric vehicles, from small electric cars to larger plug-in hybrids.
- Its robust, weather-resistant design ensures durability and reliability in various outdoor conditions. The charger features user-friendly operation with an easy-to-read display, integrated payment systems, and real-time data monitoring, allowing for seamless use by both drivers and operators.
- Safe and reliable charger is approved by TUV Mark, FCC, CB, CE, RoHS and UKCA and equipped with protection against leakage, over-voltage, undervoltage, lightning strike and overheating. With IP55, it can be used in extreme weather conditions and is a reliable travel partner.

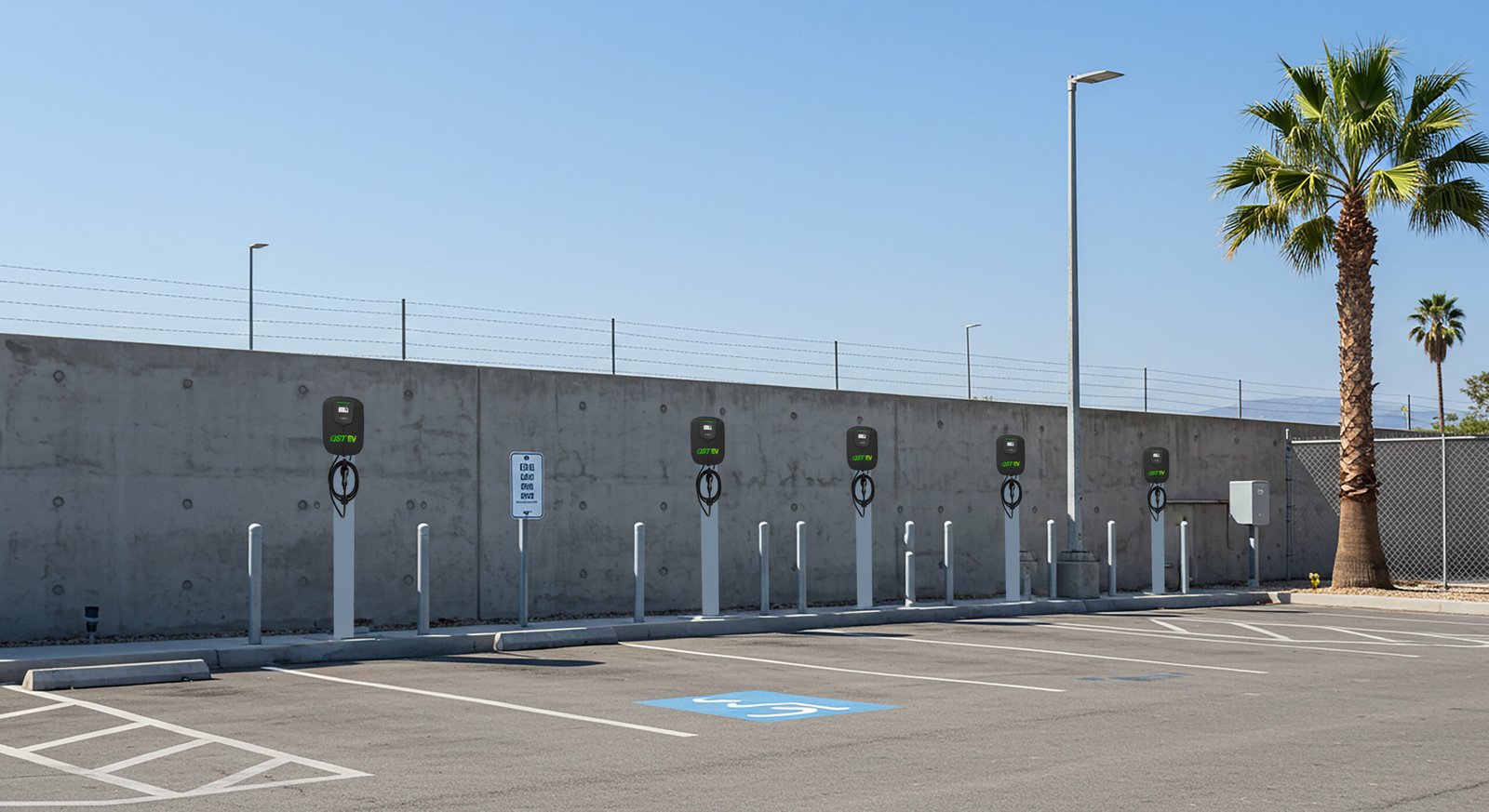

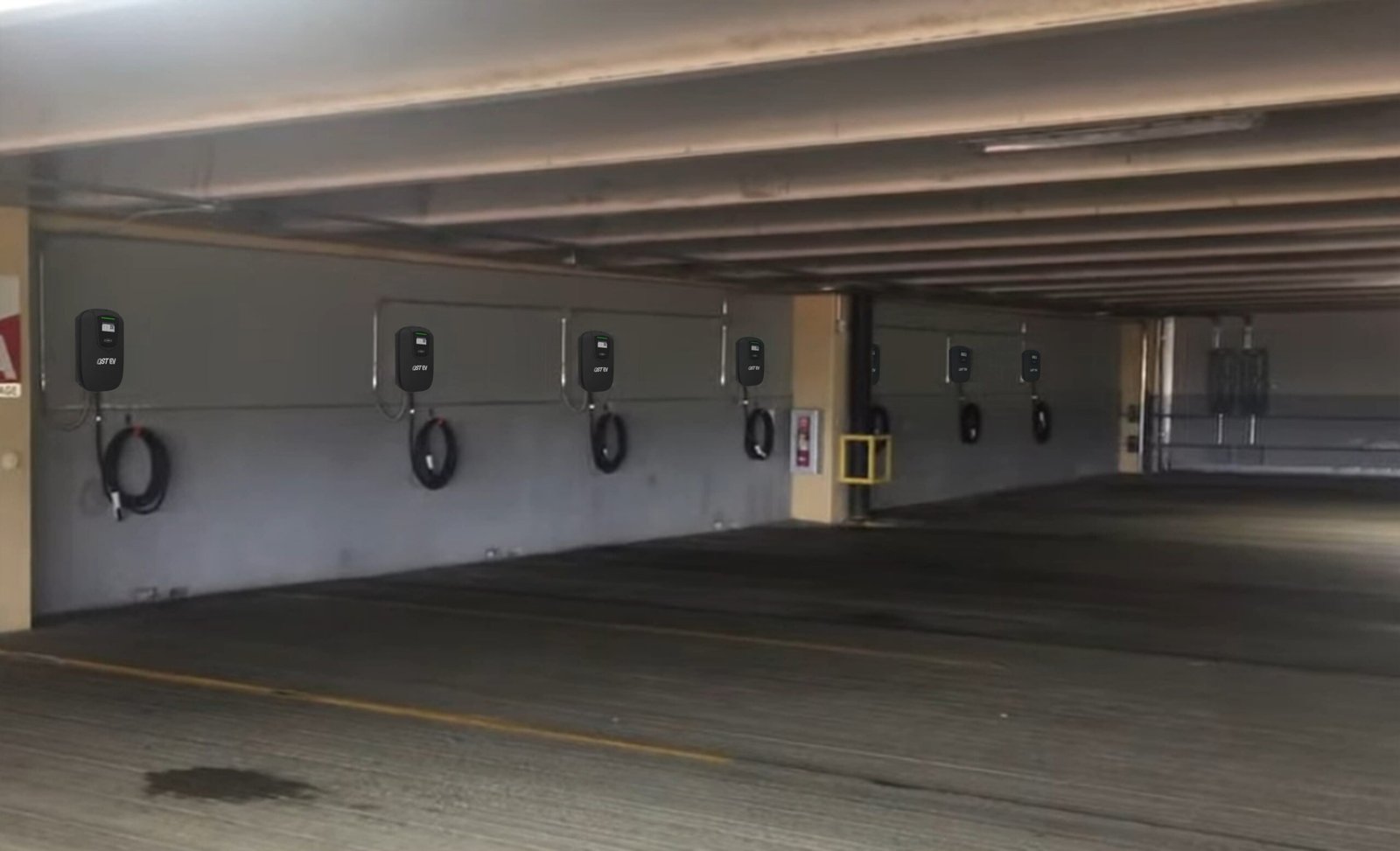

Worldwide Projacts
Download
Fill out the form to receive PDF in your email.
Elevate your business with the QST EV Smart Charging Solution—where innovation meets sustainability.
Simple and intelligent
Dynamic Load Balancing
The qstev charger home AC EV chargers are equipped with DLB (Dynamic Load Balancing) technology.When the EV charger is running simultaneously with other home appliances, the DLB box ensures a dynamic balance of the total household current.This function guarantees electricity safety and prevents household overload, thus enabling efficient and safe charging of EVs.
Smart APP Control
QST EV AC EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:
- One to one binding EV charger by resetting the password, prevent the EV charger being stolen;
- View charging data and status;
- Set up various charging configurations, charging current, DLB mode, etc.
- Scheduled charging;
- Firmware update;
